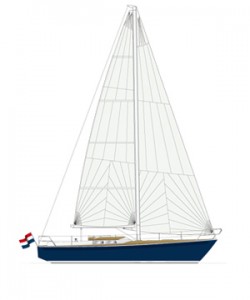

zeilplan-breehorn-37

Breehorn design principles
The lines of a Breehorn are easily recognisable: the spacious fore deck, the short superstructure aft and the well-protected cockpit stand out. Elegant and tough, a Breehorn is designed and built for sailing in all conditions. These are sturdy ships made for blue water, comfortable in all weather.

‘Pjotter’ Breehorn 37 specifications

Design                                  Koopmans Sr.

Build                                     1995

Material                                Polyester

Builder                                  Breehorn BV

Length over all                  11.20 m

Length waterline              9.05 m

Beam                                    3.54 m

Draft                                     1.90 m

Displacement                    7800 kg

Ballast                                  3250 kg

Mastheight above waterline       16.40 m

Engine                                   Volvo MD 40hp (saildrive)

Interior                                  Teak



Dacron sails

Main sail (3 reefs)                29.8 m2

Genoa                                      36,7 m2

Cutter sail                              15,0 m2

Orange storm jib                 7 m2

‘Halfwinder’ light air sail



Fuel tank                                  150 litres

Water tank                              350 litres

Black water tank                   40 litres

Certification CE category   A, Ocean

Raymarine autopilot (2010)
320Ah battery bank (Victron AGM) 2009
Battery charger (Victron) 2009
Solar charger (Mastervolt) 2009
Chart plotter (Raymarine C70) in cockpit under dodger 2009
Combined VHF and AIS (RO4800) with chart plotter overlay 2009
Radar at nav station (Koden)
Fixed 12v computer screen at navigation table (Neovo) 2010
Bruce anchor (15kg) and 70 metres of chain
Freshwater filter (Shurflo)
Webasto EVO M air heating (2011)
Air fans for cabins (4 times Hella Turbo)
LED mast headlight and anchor light
New sails and rigging (2009)
Rigid boomvang (2009)
3-blade Maxprop (2013)
Newly painted hull (April 2014)
New anti fouling (April 2014)
New dodger (August 2015)
